The DynoLog data logging software, developed for the On-Board Dyno by Kenner R&D, allows recording, display, and analysis of Horsepower, Torque, RPM, Acceleration, Speed, Elapsed Time, Time to Distance, and many other engine and vehicle parameters.


Click to enlarge

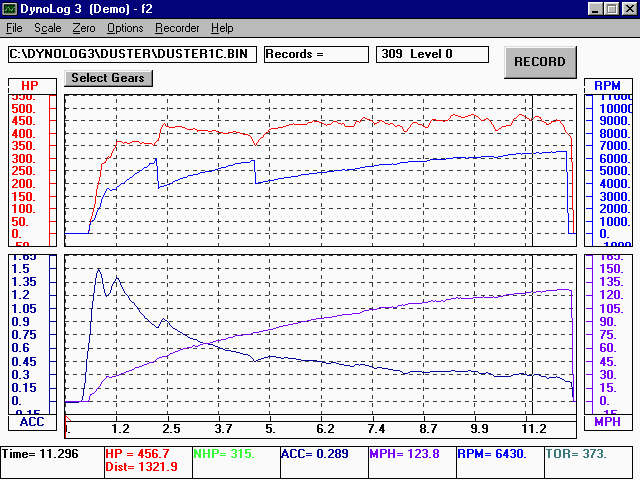

Drag
NHRA Super-Pro, 1970 Plymouth Duster, 440 CID, 1/4 mile pass
Graphical Display:
Horsepower, RPM, Acceleration, Speed
Cursor at:
456.7 HP, 373 lb/ft, .289 g, 123.8 MPH, 6430 RPM, 11.296 sec (ET)


Click to enlarge

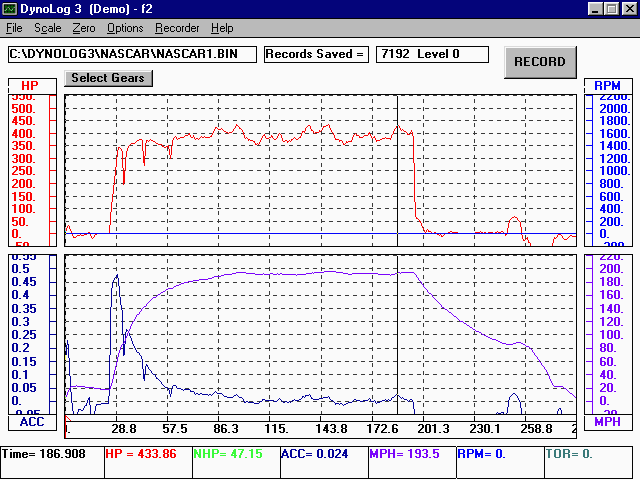

Circle Track
NASCAR Winston Cup,  No. 26, King Racing, Testing at Talladega
Graphical Display:
Horsepower, Acceleration, Speed
Cursor at:
433.86 HP, 47.15 NHP, .024 g, 193.5 MPH, 189.908 sec (from start)


Click to enlarge

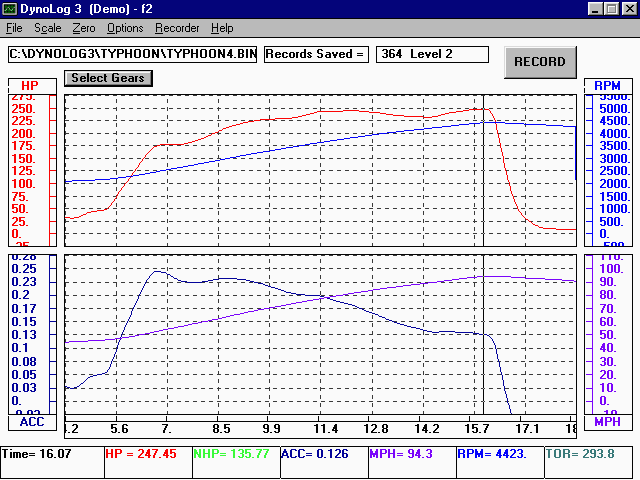

4 Wheel Drive
1992 GMC Typhoon, Turbo Charged V6
Graphical Display:
Horsepower, RPM, Acceleration, Speed
Cursor at:
247.45 HP, 135.77 NHP, 293.8 lb/ft, .126 g, 94.3 MPH, 4423 RPM


Click to enlarge

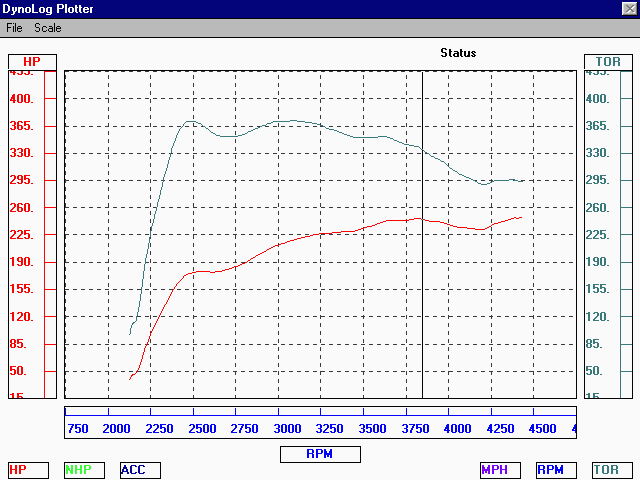

4 Wheel Drive
1992 GMC Typhoon, Turbo Charged V6
Graphical Display:
Horsepower/Torque vs. RPM
Cursor at: 3850 RPM
DynoLog Demo
Click to download a demo of the Windows data logging software for the On-Board Dyno
DosLog Demo
Click to download a demo of the DOS data logging software for the On-Board Dyno
